WARN XD9000i
Click to enlarge

WARN XD9000i

$2,009.44

Weight 85.0 lbs
Add to wishlist
Compare
SKU: 27550 Categories: ,
Description

Description

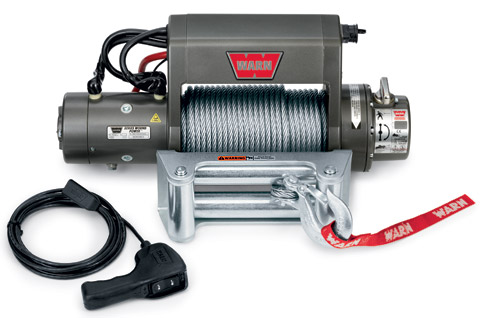

WARN XD9000i
Fast and reliable in real trail conditions
No-load retrieval line speed of 38′ per minute. Integrated solenoid. Runs cool with low amp draw for long winching duty cycles. Comes with 125′ of 5/16″ wire rope.
  • Integrated control box provides excellent protection to electronics
  • Exclusive brake design provides superior control while winching
  • Durable 3-stage planetary geartrain for smooth, reliable, operation
  • Series-wound, high-speed motor provides fast line speed and strong pulls
  • Next-genertion remote control with 12′ (3.7m) lead
  • Chip-resistant, powder-coated finish
  • 125′ of 5/16″ (38m of 8mm) diameter wire rope

WARN XD9000i Specs:

Rated Line Pull: 9,000 lbs. (4080 kgs) single-line
Motor: Series Wound 12V 4.6 hp, 24V 2.5 hp
Electrical controls: Solenoid
Remote Control: Remote switch, 12 ft (3.7m) lead
Geartrain: 3-Stage Planetary
Gear ratio: 156:1
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum diameter/Length: 2.5 in /9.0 in (6.4cm/23cm)
Weight: 85 lbs. (38.5kgs.)
Wire rope: 125 ft, 5/16 in dia. (38m, 8mm)
Fairlead: Roller (Multi-Mount kit includes Hawse fairlead)
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 in (1.83m)
Finish: Argent Gray Powder Coat

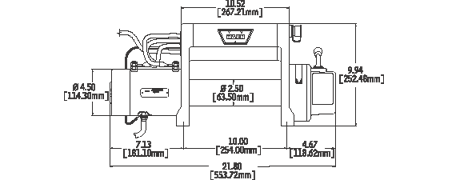

Winch dimensions: 23.1in L. x 6.3 in D. x 10.0 in H. (587mm L. x 160mm D. x 254mm H.)
Mounting bolt pattern: 10.0 in x 4.5 in (254mm x 114.3mm)
