WARN XD9000
Click to enlarge

WARN XD9000

$1,837.93

Weight 80.0 lbs
Add to wishlist
Compare
SKU: 28500 Categories: ,
Description

Description

WARN XD9000
Long time best selling winch
Long-time best seller. A durable 9,000 lb. winch with a compact body and separate control pack that allows you to use it in tight spaces. Comes with 100′ of 5/16″ wire rope. Backed by the Warn Limited Lifetime Warranty.
  • New, next generation electrical control box and hand-held remote control
  • Low-profile design and separate control box allows for a wide range of mounting options
  • Exclusive brake design provides superior control while winching
  • Durable 3-stage planetary geartrain for smooth, reliable, operation
  • Series-wound, high-speed motor provides fast line speed and strong pulls
  • Chip-resistant, powder-coated finish
  • 100′ of 5/16″ (30m of 8mm) diameter wire rope

WARN XD9000 Specs:

Rated line pull: 9,000 lbs., (4080 kgs.) single-line
Motor: Series Wound: 12V 4.6 hp, 24V 2.5 hp
Electrical controls: Contactor
Remote Control: Remote switch, 12 ft (3.7m) lead
Geartrain: 3-Stage Planetary
Gear ratio: 156:1
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone

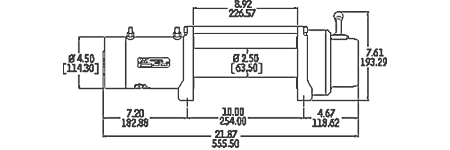

Drum diameter/Length: 2.5 in/9.0 in (6.4cm/23cm)
Weight: 78 lbs. (35kgs.)
Wire rope: 100 ft, 5/16 in dia. (30m, 8mm)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 in (1.83m)
Finish: Argent Gray Powder Coat
