WARN M8274-50


Weight 110.0 lbs
SKU: 38631 Categories: ,


WARN M8274-50
Fastest line speed, longest wire rope, legendary performance
Loved by off-roaders who compete, it’s our fastest winch. No-load retrieval line speed of 73.4′ per minute. Line capacity is long – 150′ of 5/16″ wire rope. Our original 8,000 lb. capacity off-road winch.
  • Rugged spur-gear drive train and unique upright design
  • Automatic disc braking system delivers smooth operation with superior heat dissipation
  • Roller fairlead, new-design remote control, free spool clutch

WARN 8274-50 Specs:

Rated line pull:  8,000 lbs., (4080 kgs.) single-line
Motor: Series Wound, 12V 4.6 hp/3.43kw, 24V 2.5 hp/3.43kw
Electrical controls: Solenoid Control Pack
Remote Control: Remote switch, 12 ft (3.7m) lead
Geartrain: Spur Gear
Gear ratio: 134:1
Clutch (freespooling): Sliding Motor Pinion Gear
Brake: Automatic disc type

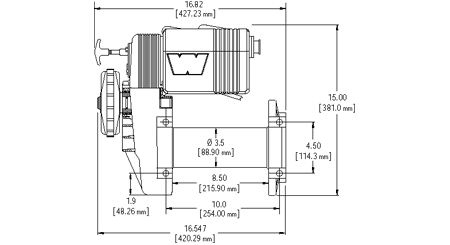

Drum diameter/Length: 3.5 in/8.5 in (9cm/22cm)
Weight: 110 lbs. (50kgs.)
Wire rope: 150 ft, 5/16 ft diameter (46m, 8mm diam.)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 in (1.83m)
Finish: Powder Coat with Clear Coat
