Highest capacity, most technologically advanced winch for big trucks
The 16.5ti features the full diagnostic ability of WARN thermometric technology, plus the extreme sealing, durability, and reliability that the WARN ti-series of winches are known for. Series-wound motor combined with a 3-stage planetary geartrain delivers 16,500 lbs. of pulling power. Thermometric indicator LED provides operator feedback on motor temperature.
|Motor: 12V 4.6 hp, Gen II, Series Wound|
|Electrical Control: Solenoid Control Pack|
|Remote control: Remote switch, ti, with LED indicator 12 ft (3.7m) lead|
|Geartrain: 3-stage planetary|
|Gear ratio: 315:1|
|Clutch (freespooling): Rotating ring gear|
|Brake: Automatic direct drive cone|
|Wire rope: 90 ft, 7/16 in diameter (27m, 11mm diam.)|
|Recommended battery: 650 CCA minimum for winching|
|Battery leads: 2 gauge, 72 ft (1.83m)|
|Finish: High-gloss powder coat over primer undercoating|

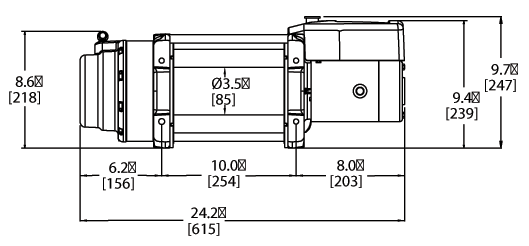

|Drum diameter/length: 3.5 in /8.2 in (9cm/21cm)|
|Weight: 138 lbs. (63 kgs.)|
