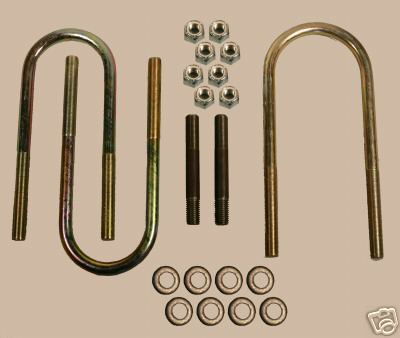

Dana 60 U-Bolt Kit – Front Axle Dana 60 U-Bolt Kit - Front Axle $70.00
Next product
Universal Front Shackle Kit: Axle Swap Universal Front Shackle Kit: Axle Swap $80.00 – $120.00
Spring Over Kit: Universal
Click to enlarge

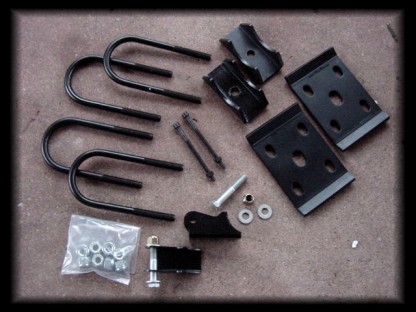

Spring Over Kit: Universal

$250.00 – $290.00

The Spring Over Kit is a comprehensive rear axle spring over kit that includes all the necessary components to relocate your shocks to the axle tube and mount the springs onto the top of the axle, compatible with Dana 30, 44, and 60, and requires welding and fabrication.

Weight 25.0 lbs
Clear
Add to wishlist
Compare
SKU: N/A Categories: , , ,
Description

Description

The Universal Spring Over Kit is a comprehensive solution to relocate shocks to the axle tube and springs onto the top of the axle, including all necessary hardware such as larger U-bolts, spring perches, center pins, and shock mounts with Grade 8 hardware; welding and fabrication are required. Additionally, removing added leaves and the shortest leaf will lessen the arch in the spring pack, and a straight drive shaft is required with the rear shaft needing to be re-tubed to eliminate the carrier bearing. It is compatible with Dana 30, Dana 44, and Dana 60 axles.

Includes:

  • New Larger U-bolts with Hardware
  • 2 Stock Ride Height Heavy Duty Shackles with Hardware
  • 2 Spring Perches
  • 2 Spring Center Pins
  • 2 Lower Shock Mounts with Grade 8 Hardware
  • 2 Heavy Duty Spring Plates

Requires the use of a straight drive shaft, your rear shaft must be re-tubed to eliminate the carrier bearing.
Remove added leaves and the shortest leaf to lessen the arch in the spring pack.
Welding and fabrication required.
